FORGED STEEL VALVE & SOIL LINE BRANCH VALVE

저희 ㈜풍진금속은 최고의 제품을 생산합니다.
최고의 품질로 고객만족을 위해 최선을 다합니다.

Forged Steel Globe Air Valves JIS F 7336

Dimensions
(unit : mm)
Dimensions
Type Size Pipe out dia. Face to Face Lift Thickness Height Handwheel Weight(kg)
Copper Steel
S/U 6 8 10.5 102 7 6 130 80 1.26/1.30
10
10 15 17.3 126 8 6 150 100 1.80/1.94
F 15 - - 150 10 7 200 125 5.60
20 - - 170 12 8 220 140 7.09
25 - - 200 14 9 250 140 9.46

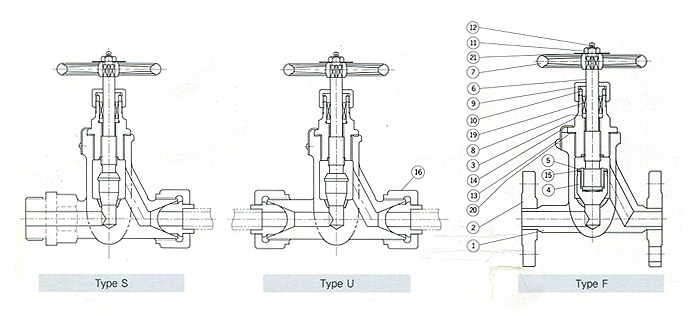

Material of Each Part
Material of Each Part
No. Component Material No. Component Material
1 Body Steel 11 Hexagon nut Brass
2 Flange 12 Split pin Brass
3 Bonnet 13 Machine screw Brass
4 Disc Brass 14 Bonnet lock plate Stainless
5 Valve disc nut 15 Disc lock washer Brass
6 Stem 16 Union nut steel
7 Handwheel Cast iron 19 Packing -
8 Seat ring Brass 20 Gasket Asbestos free
9 Gland nut 21 Name Plate Brass
10 Gland
