BRONZE VALVE

저희 ㈜풍진금속은 최고의 제품을 생산합니다.
최고의 품질로 고객만족을 위해 최선을 다합니다.

5K Globe Valves/Check JIS F 7301/7351
16K Globe Valves/Check JIS F 7303/7409

Dimensions
(unit : mm)
Dimensions
Rating Size Face to Face Flange Height Handwheel Weight(kg)
Dia Pcd Bolt Hole
5K
(7301/7351)
15 100 80 60 4-12 130 80 2.02/1.96
20 110 85 65 4-12 140 100 2.86/2.77
25 120 95 75 4-12 160/155 125 3.54/3.41
32 140 115 90 4-15 170/165 125 5.00/4.86
40 160 120 95 4-15 190/185 140 6.48/6.30
50 210 130 105 4-15 235 140 11.7
65 250 155 130 4-15 260 160 17.0
16K
(7303/7409)
15 110 95 70 4-15 130 80 2.76/2.70
20 120 100 75 4-15 140 100 3.72/3.63
25 130 125 90 4-19 160/155 125 5.20/5.09
32 160 135 100 4-19 170/165 125 6.91/6.77
40 180 140 105 4-19 190/185 140 8.43/8.25

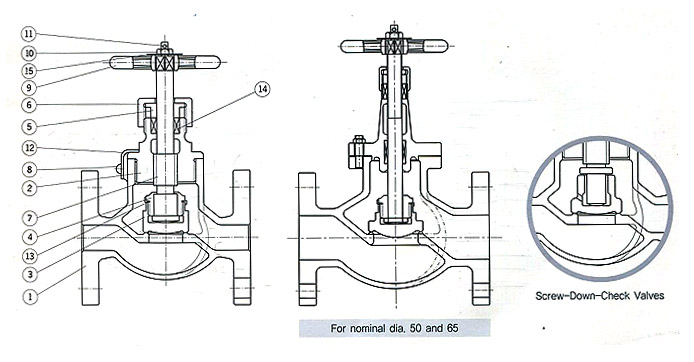

Material of Each Part
Material of Each Part
No. Component Material
1 Body Bronze
2 Bonnet Bronze or Brass
3 Disc Bronze or Brass
4 Valve disc nut Brass
5 Packing gland Brass
6 Gland nut Brass
7 Stem Brass
8 Set Screw Brass
9 Handwheel Cast iron
10 Hexagon nut Brass
11 Split pin Brass
12 Lock Plate Brass
13 Disc Lock Washer Brass
14 Packing Asbestos free
15 Name Plate Brass
Hydraulic Inspection
Hydraulic Inspection
Rating 5K 16K
Body 1.03Mpa 3.3Mpa
Seat 0.76Mpa 2.42Mpa
